Description
CT16v / VB35.
(ELECTRONIC ACTUATOR / STEPPER MOTOR ONLY)
SD04T120002

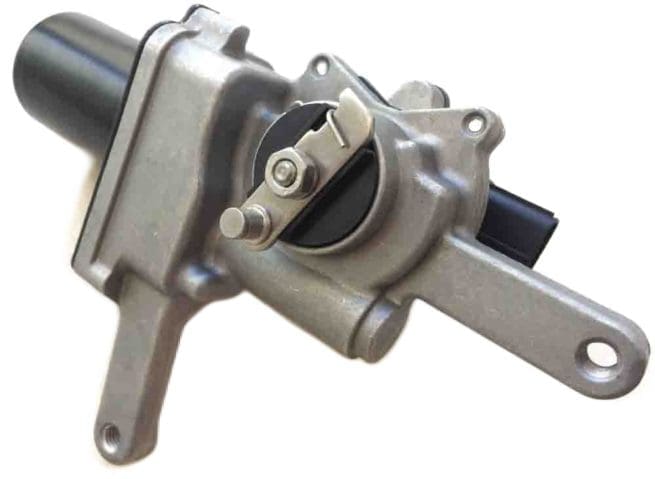

Turbocharger Electronic Stepper Motor / Actuator.
Suitable for replacement on:
Toyota Hiace:
– KDH201 (10/2006 – 12/2018).
– KDH221 (10/2006 – 01/2019).
– KDH223 (10/2006 – on).
Engine Type: 1KDFTV / 1KD-FTV (3.0L)
CT12v | CT16v
RHV4 VB35 | VAD20066
17201-30150 | 1720130150
17201-30180 | 1720130180
17201-30181 | 1720130181
17201-30200 | 1720130200
17201-30201 | 1720130201
17201-0L060 | 172010L060
If you are unsure of part number, please email 17 digit VIN before purchase.
No physical symptom from Turbo? (i.e. not worn, leaking oil, squealing etc), but vehicle in limp mode.?
It MAY be just a faulty Stepper motor only.
It is recommended to have the vehicle scanned for a Stepper / Actuator fault code.
Why replace the entire turbo if all you need is to replace the stepper?.
NOTE: If you also require the more than our aftermarket Actuator, please see our product pages that advertise Flow-tested Turbo / Actuator combos at a discount.
Having Toyota Hiace turbo actuator issues?
ECU code: P1251 usually means the Actuator / Stepper Motor needs replacing.
We stock 1KD-FTV 3.0L D4D Turbocharger Actuators suitable to fit Toyota Hiace.
Our aftermarket replacement Turbocharger actuators are covered with a 3 Year Warranty.
