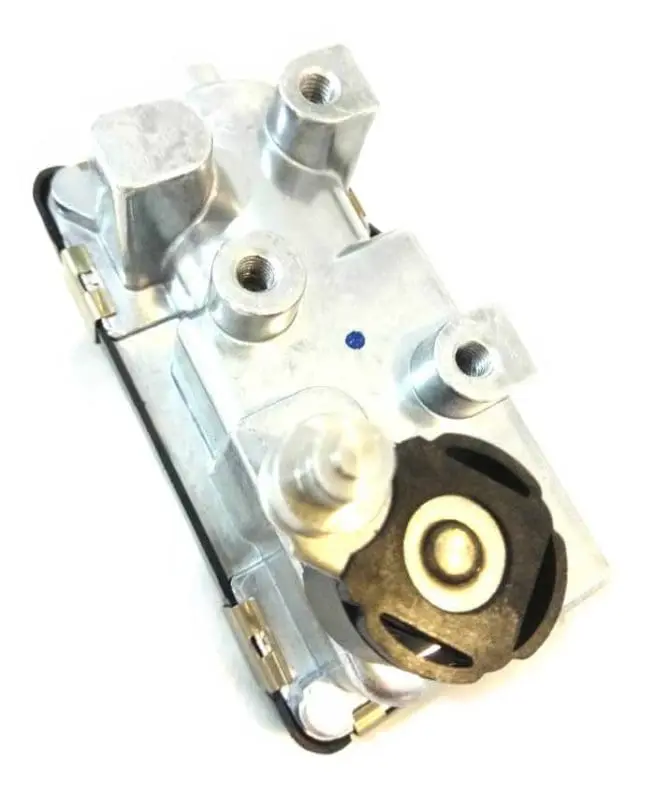

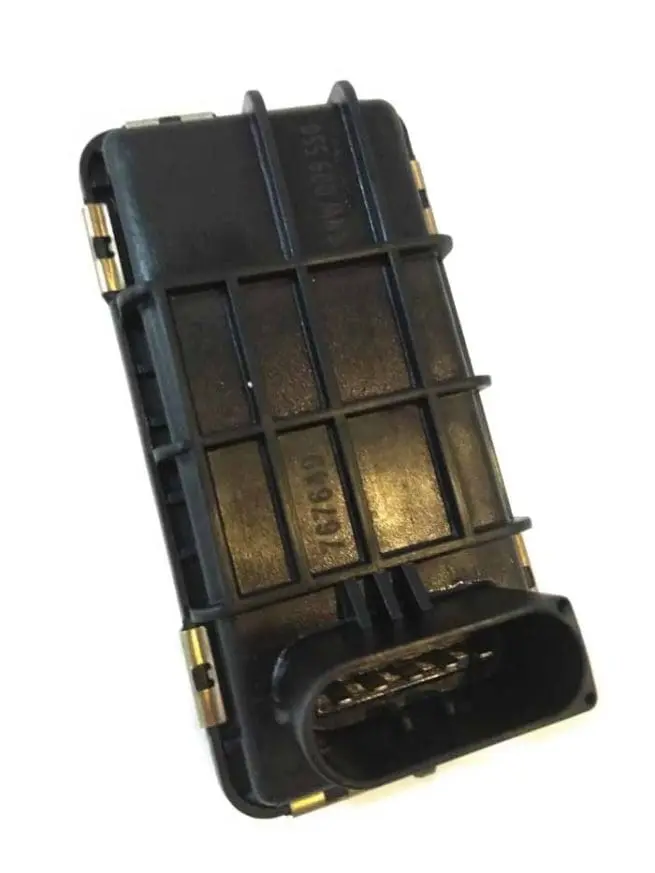

Turbocharger Electronic Stepper Motor Actuator G-88 6NW009550-027 suit 2.2L Ford Ranger Transit VO Mazda BT-50 854800

Description

Fits Garrett Turbocharger Model: GTB1749v.
(ELECTRIC ACTUATOR / STEPPER MOTOR).

Vehicle: Suitable for:
FORD:
Ranger 2.2L PX PX1 PX2 ~2011-2015.
Transit Van & Bus 2.2L VO 2.2L ~03/12 on 114kW RWD(Rear Wheel Drive only).
MAZDA:
BT-50 BT50 2.2L B22 B32 UP/UR ~2011-2015.
Engine Type: 2.2L DURATORQ P4AT CVR5 CVRB CYFD CYR5 CYRA DRR5 DRRA GBVAJQJ UHR5 USR6 USRA UYR6 TDCi.

ACTUATOR WARRANTY: 36 MONTHS.

Stepper Motor Type / Part Numbers:

G-088 / G-88 / G088
SREA
6NW009550-027
767649-0088

Stepper Motor fit Turbo Part Numbers:

BK3Q6K682CB | BK3Q-6K682-CB
BK3Q6K682CC | BK3Q-6K682-CC
BK3Q6K682DA | BK3Q-6K682-DA
BK3Q6K682PB | BK3Q-6K682-PB
BK3Q6K682PC | BK3Q-6K682-PC
BK3Z6K682T | BK3Z-6K682-T
1760759 | 1717628 | 1719695
1899517
U20313700 | U20313700A

GTB1749V
GTB1749VK
787556-16 | 787556-0016
787556-17 | 787556-0017
787556-22 | 787556-0022
787556-5016 | 787556-5016S
787556-5017 | 787556-5017S
787556-5022 | 787556-5022S
854800-0001 | 854800-1
854800-5001 | 854800-5001S
854800-5001W

NOTE: Will NOT fit FWD 2.2L Transit with Part Starting: 786880 or BK2Q.

Part Type: Turbocharger Electronic Stepper Motor / Actuator only.

No physical symptom from Turbo? (i.e. not worn, leaking oil, squealing etc), but vehicle in limp mode?
It MAY be just a faulty Stepper motor only.
It is recommended to have the vehicle scanned for a Stepper / Actuator fault code.
Why replace the entire turbo if all you need is to replace the stepper?

NOTE: If you also require the Turbocharger, please search our website for complete flow-tested Turbo/actuator units.

Need a 2.2L Mazda BT-50 or Ford Ranger / Transit VO Turbo Actuator only?
In stock, quality Hella type replacement Electric Actuator / Stepper Motors to fit the 2.2L P4AT Diesel.
